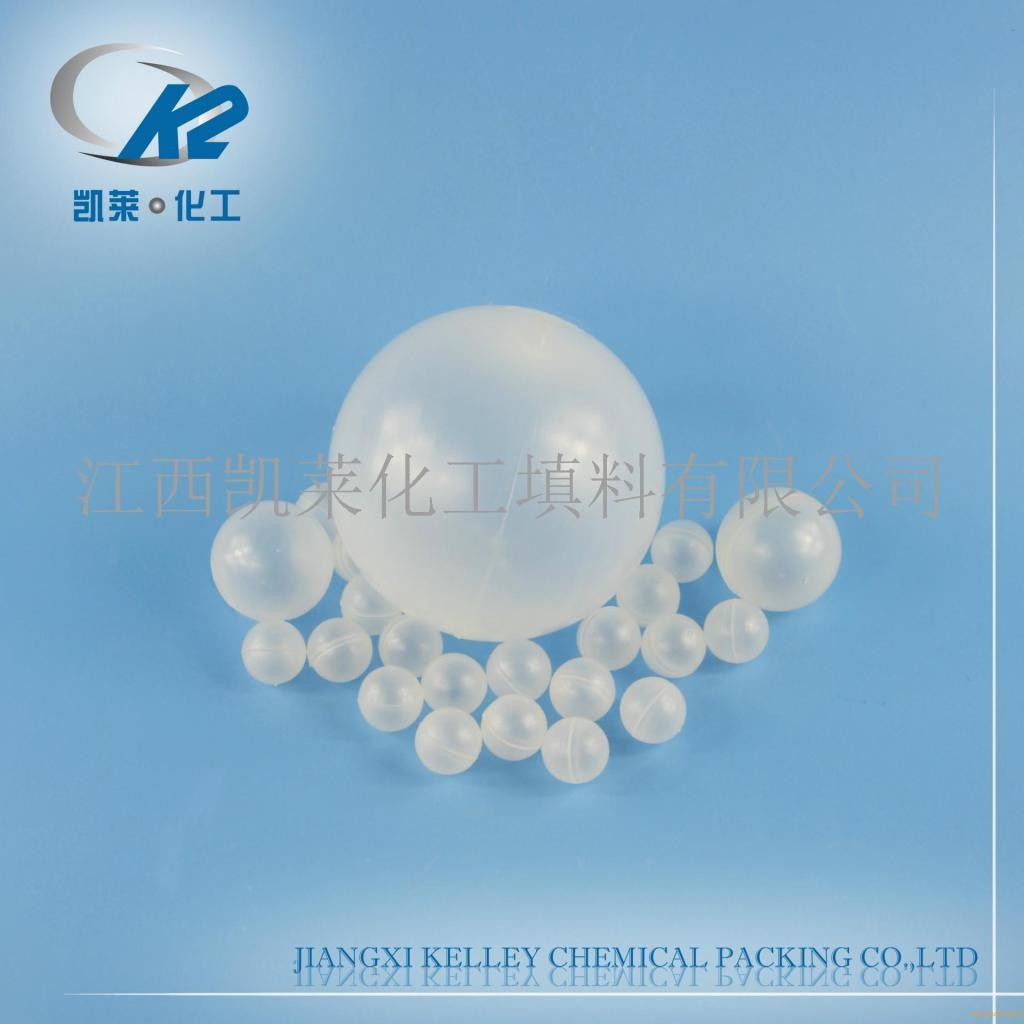

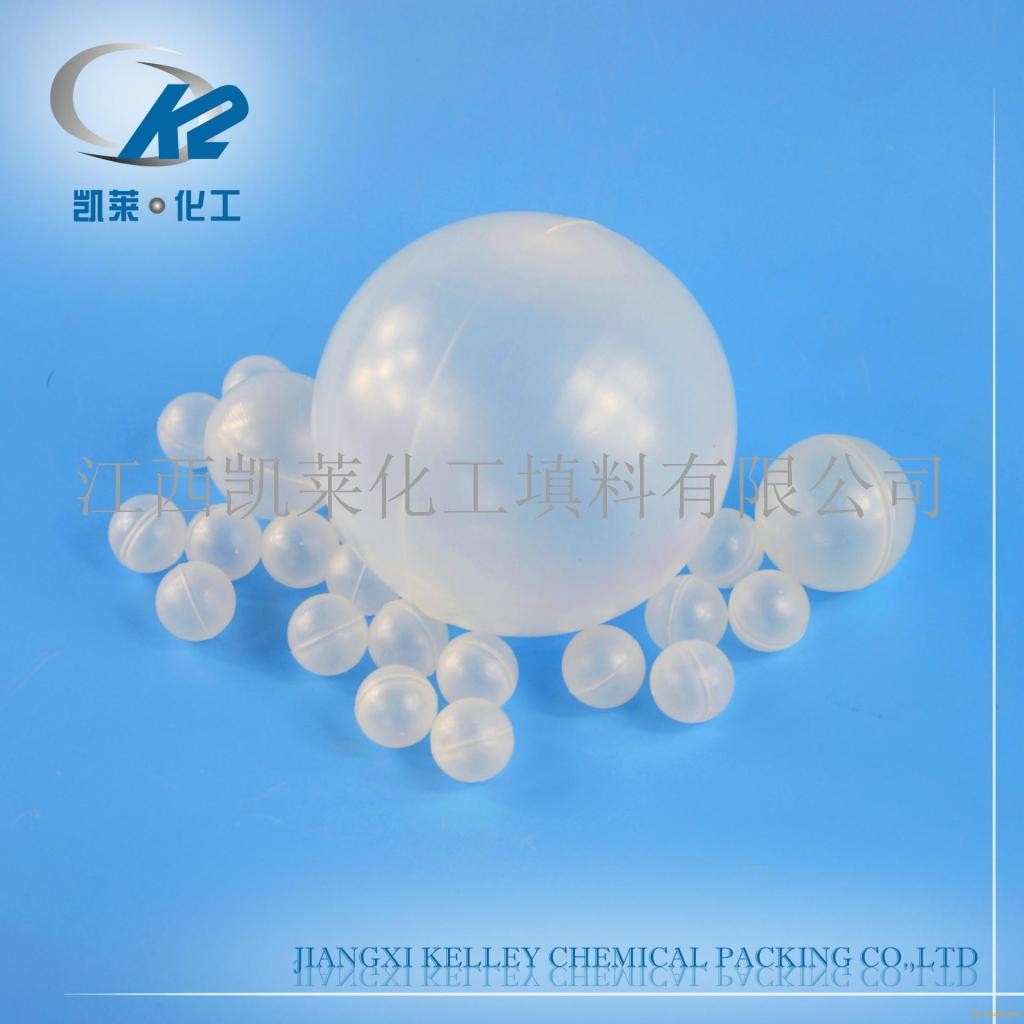

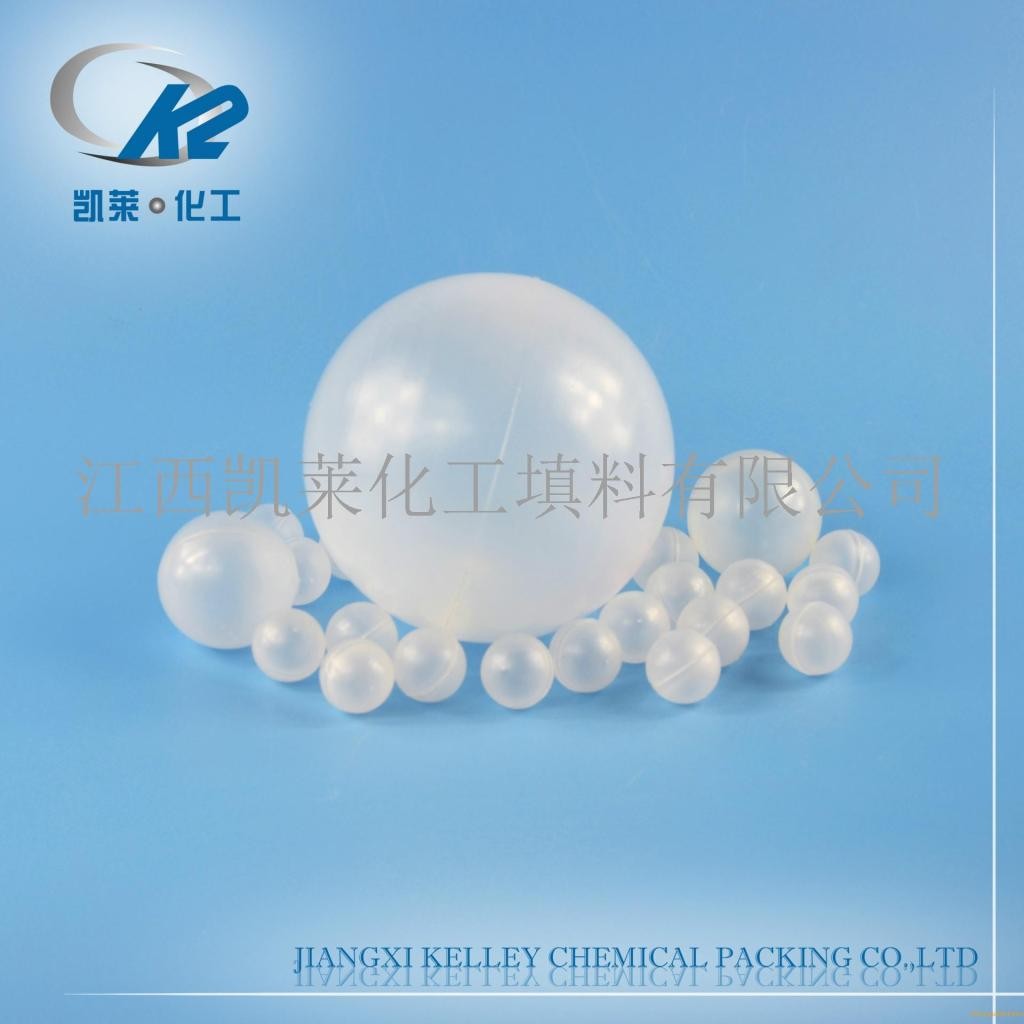

塑料空心浮球
  • 品牌:凯莱
  • 发布日期: 2021-04-12
  • 更新日期: 2023-09-28
产品详请
品牌 凯莱
材质 PP RPP PE PVC CPVC等堕料
型号 KL-SL
密度 0.89g/cm3
执行质量标准 国家标准
厂商 江西凯莱化工填料有限公司

产品介绍

塑料空心浮球具有空隙率大,耐热,耐化学腐蚀,比重小等特点。在各种介质中的使用温度为60-150度,塑料空心浮球可以大程度减少热量散失,减小酸雾及空气中的二氧化碳和氧对水的污染,达到保持水质,节约能源,净化环境的效果。塑料空心浮球具有重心稳定,边与边重叠,覆盖效果好的特点。塑料空心浮球广泛用于石油、化工、电镀厂、环保行业等行业的填料塔中。

undefined

Product Name

产品名称

Polyhedral Hollow Ball

塑料多面空心球

Material

材质

PP PVC RPP PFA CPVC HDPE PTFE ETFE ABS

Life Span

使用寿命

>3 years

Size

(mm)

重量

Average weight

(g)

个数

Number

(pet ft2)

个数

Number

(pet m2)

10

0.2

1076

11600

20

1.0

270

2900

25

1.5

172

1850

38

4.5

74

800

45

7.0

53

570

50

8.0

43

465

55

10.5

35

380

70

16.0

22

235

100

40

10

116

150

100

5

55

Feature

性能

High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer.

空隙率大、压降低、传质单元高度低、 泛点高、 气液接触充分 比重小、 传质效率高

Advantage

优点

1. Their special structure make it has big flux, low pressure drop, good anti-impaction capability.特殊的结构使其流通量大、压降低、机械强度好。
2. Strong resistance to chemical corrosion, large void space. energy saving, low operation cost and easy to be load and unload.较强的耐腐蚀性能、空隙率大、节能环保、成本低、比重轻装卸容易。

Application

应用领域

It is widely used in petroleum and chemical,alkali chloride,gas and environmental protection industries.

塑广泛用于石油,化工,氯碱,煤气,环保等行业的填料塔里。


理化性能

Plastic tower packing can be made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chlorinated polyvinyl chloride (CPVC) ,polyvinyiidene fluoride (PVDF),The temperature in media ranges from 60 Degree C to 280 Degree C.

塑料散堆塔填料是由聚乙烯(PE)、聚丙烯(PP)、增强聚丙烯(RPP)、聚氯乙烯(PVC)、氯化聚氯乙烯(CPVC)、聚偏乙烯(PVDF,聚四氟乙烯(PTFE)等制成的塔填料。具有高空隙率,低压降,低传质单位高度,泛点高,气液接触充分,比重小,传热传质效率高等特点。这些塑料散堆填料的操作温度使用温度可在60-280摄氏度。

Performace/ Material性能/材料

PE

PP

RPP

PVC

CPVC

PVDF

Density (g/cm3)(after injection molding)

密度(注塑后)

0.98

0.96

1.2

1.7

1.8

1.8

Operation Temp.()

操作温度

90

100

120

60

90

150

ChemicalCorrosion resistance

耐腐蚀性能

GOOD

GOOD

GOOD

GOOD

GOOD

GOOD

Compression Strength(Mpa)

抗压强度

6.0

6.0

6.0

6.0

6.0

6.0

Material原材料

Our Factory assure all tower packing made from 100% Virgin Material

我们工厂保证所有塔填料都是由100%全新料制成。
