塑料八四内弧环
  • 品牌:凯莱
  • 发布日期: 2017-12-29
  • 更新日期: 2023-09-28
产品详请
品牌 凯莱
材质 PP RPP PE PVC CPVC等堕料
型号 KL-SL
加工定制
密度 0.89g/cm3
执行质量标准 国家标准
厂商 江西凯莱化工填料有限公司

 产品说明

塑料八四内弧环空隙率大、压降小、传质单元高度低、泛点高、气液接触面积大、比重轻、传质效率大等优点。被广泛用于石油,化工,氯碱,煤气,环保等行业的填料塔里。

塑料八四内弧环填料也称麦勒环填料。塑料八四内弧环填料的特点是环壁开敞面积大,所以塑料八四内弧环填料具有通量大、阻力小和传质效率高等特点。

塑料八四内弧环填料有合理的几何对称性,构造均匀性好及高的空隙率,八弧圈与四弧圈顺轴向交替安排,各弧段沿径向向环内折进,从而使填料表面连续而不断开,且在空间均匀分布,与鲍尔环相比,通量可提高15-30%,压降减小20-30%被公认为效率极好的塔填料。

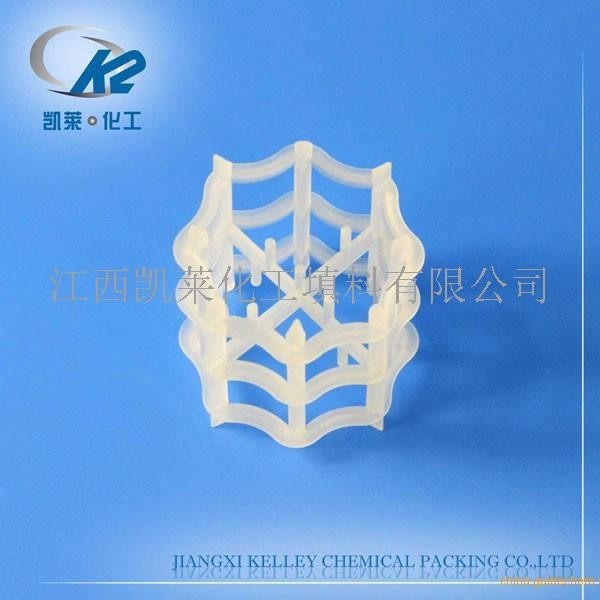

 产品图片 塑料填料八四内弧环

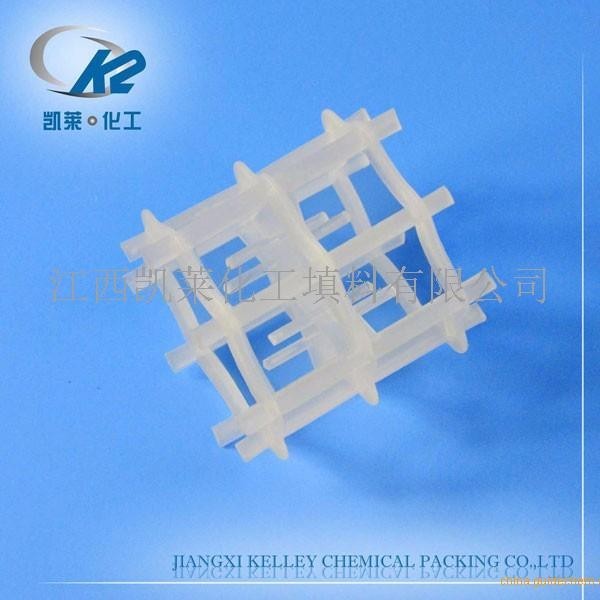

塑料填料八四内弧环2

塑料填料八四内弧环3

 技术参数

产品名称

Plastic VSP Ring (Plastic mella ring )

塑料八四内弧环 或者 塑料麦勒环

材质

PP,PE,PVC,CPVC,PVDF ,etc

使用寿命

>3 years

尺寸

m2/m3

比表面积

%

空隙率

pieces/ m3

堆积个数

Kg/m3

堆积重量

Inch

mm





1”

25

185

93

55000

60

1-1/2”

38

138

94

16000

58

2”

50

121

95

5500

45

3-1/2

90

40

97

1180

30

Feature

性能

High void ratio, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high efficiency of mass transfer. 空隙率大、压降低、传质单元高度低、 泛点高、 气液接触充分  比重小、 传质效率高

Advantage

优点

1.Their special structure make it has big flux, low pressure drop, good anti-impaction capability.特殊的结构使其流通量大、压降低、机械强度好。
2. Strong resistance to chemical corrosion, large void space. energy saving, low operation cost and easy to be load and unload.较强的耐腐蚀性能、空隙率大、节能环保、成本低、比重轻装卸容易。

Application

应用领域

These various plastic tower packing are widely used in petroleum and chemical,alkali chloride,gas and environmental protection industries with max. temperature of 280°.塑料散堆填料的*使用温度为280摄氏度,广泛用于石油,化工,氯碱,煤气,环保等行业的填料塔里。

Material原材料

 Our Factory assure all tower packing made from 100% Virgin Material

我们工厂保证所有塔填料都是由100%全新料制成。
